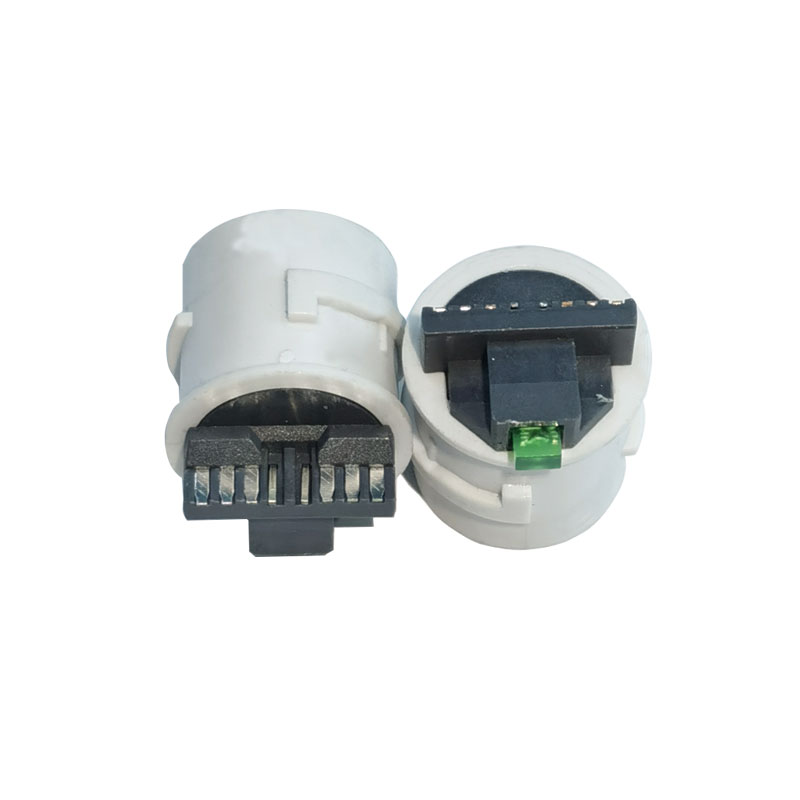

一款既适合手工焊锡又完美适合自动焊锡机的RJ45安防尾线带灯连接器。

可带灯/不带灯，4/5,7/8短路。

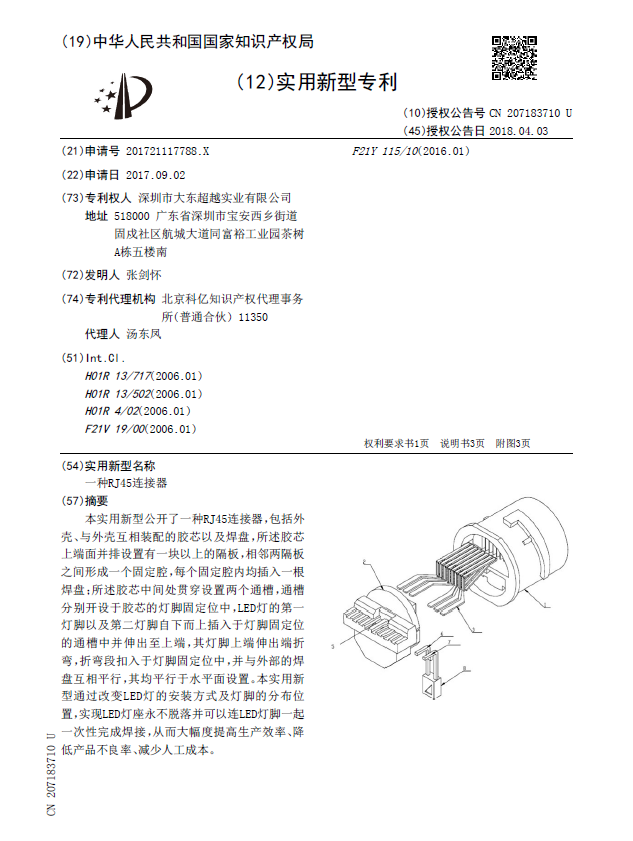

国家专利：专利号：ZL 2017 2 1117788.X

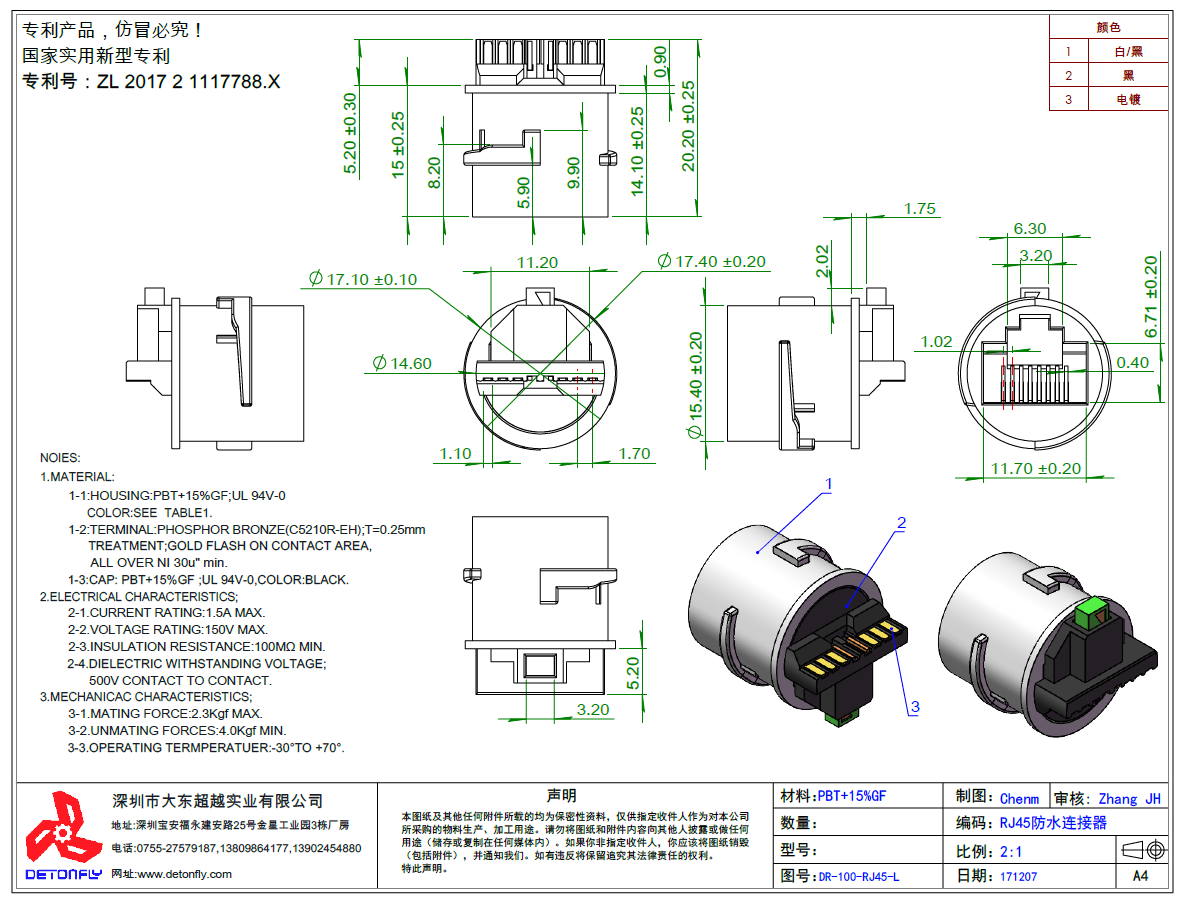

1.MATERIAL:

1-1:HOUSING:PBT+15%GF,UL 94V-0.

COLOR: WHITE OR BLACK

1-2:CAP: LCP+38%GF ;UL 94V-0.

COLOR:BLACK

1-3:TERMINAL:PHOSPHOR.BRONZE(C5210R-EH);T=0.25mm.

TREATMENT:GOLD FLASH ON CONTACT AREA 1u",

ALL OVER NI 30u" min.

2.ELECTRICAL CHARACTERISTICE

2-1.CURRENT RATING:1.5A MAX.

2-2.VOLTAGE RATING:150V MAX.

2-3.INSULATION RESISTANCE:100MΩ MIN.

2-4.DIELECTRIC WITHSTANDING VOLTAGE;

2-5.CONTACT RESISTANCE:35mΩMax.

500V CONTACT TO CONTACT.

3.MECHANICAC CHARACTERISTICS;

3-1.MATING FORCE:2.3Kgf MAX.

3-2.UNMATING FORCES:2.3Kgf MAX.

3-3.DURABILITY CYCLES:750 CYCLES,20 CYCLES/MIN.

4.ENVIRONMENT:

4-1.OPERATING TERMPERATUER:-40℃～+85℃.

4-2.SALT MIST:CONTACT AREA 24H.TESTED RESULT: NO RUST,NO OXIDATION NO EXPOSURE C0PPER ETC.

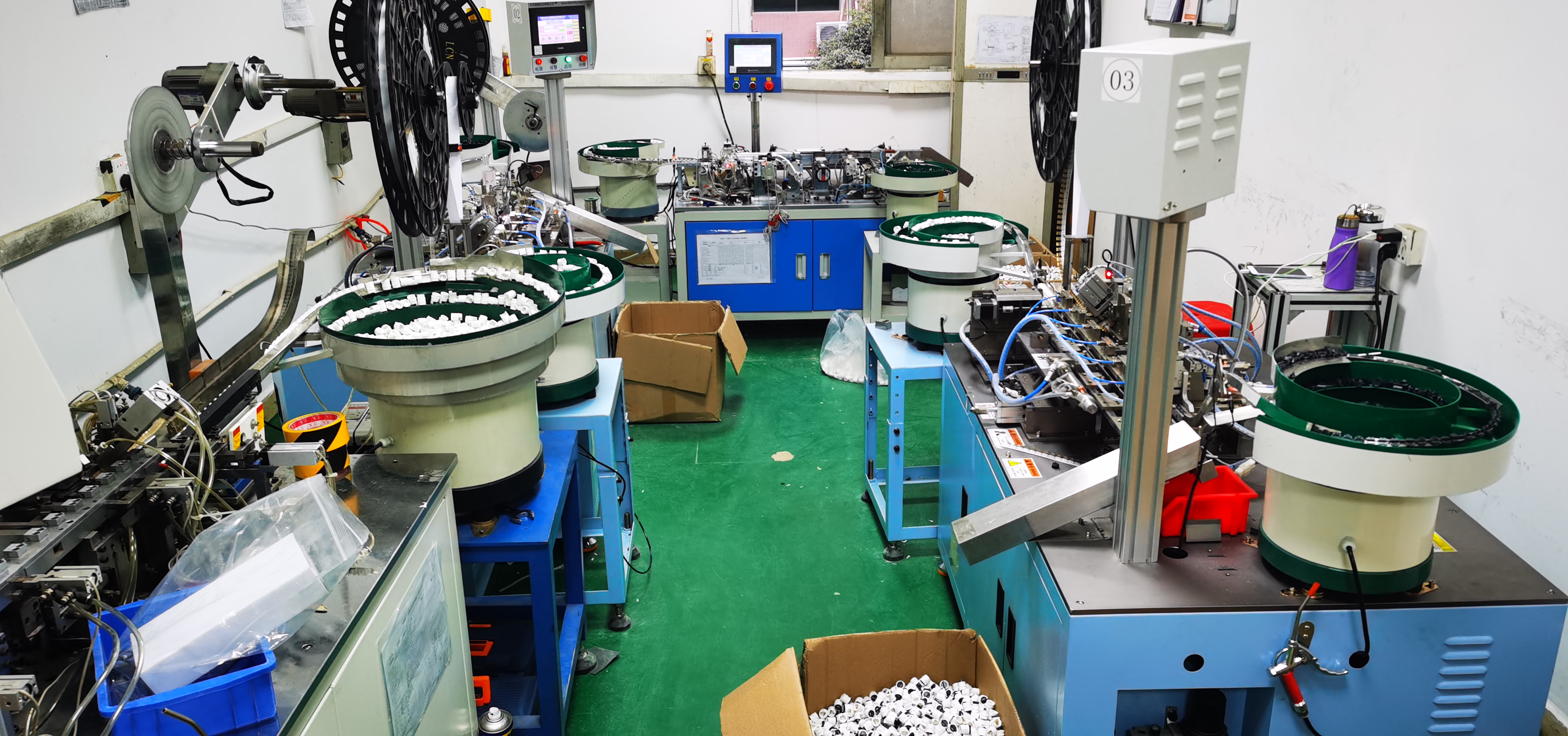

全自动组装车间一角：
